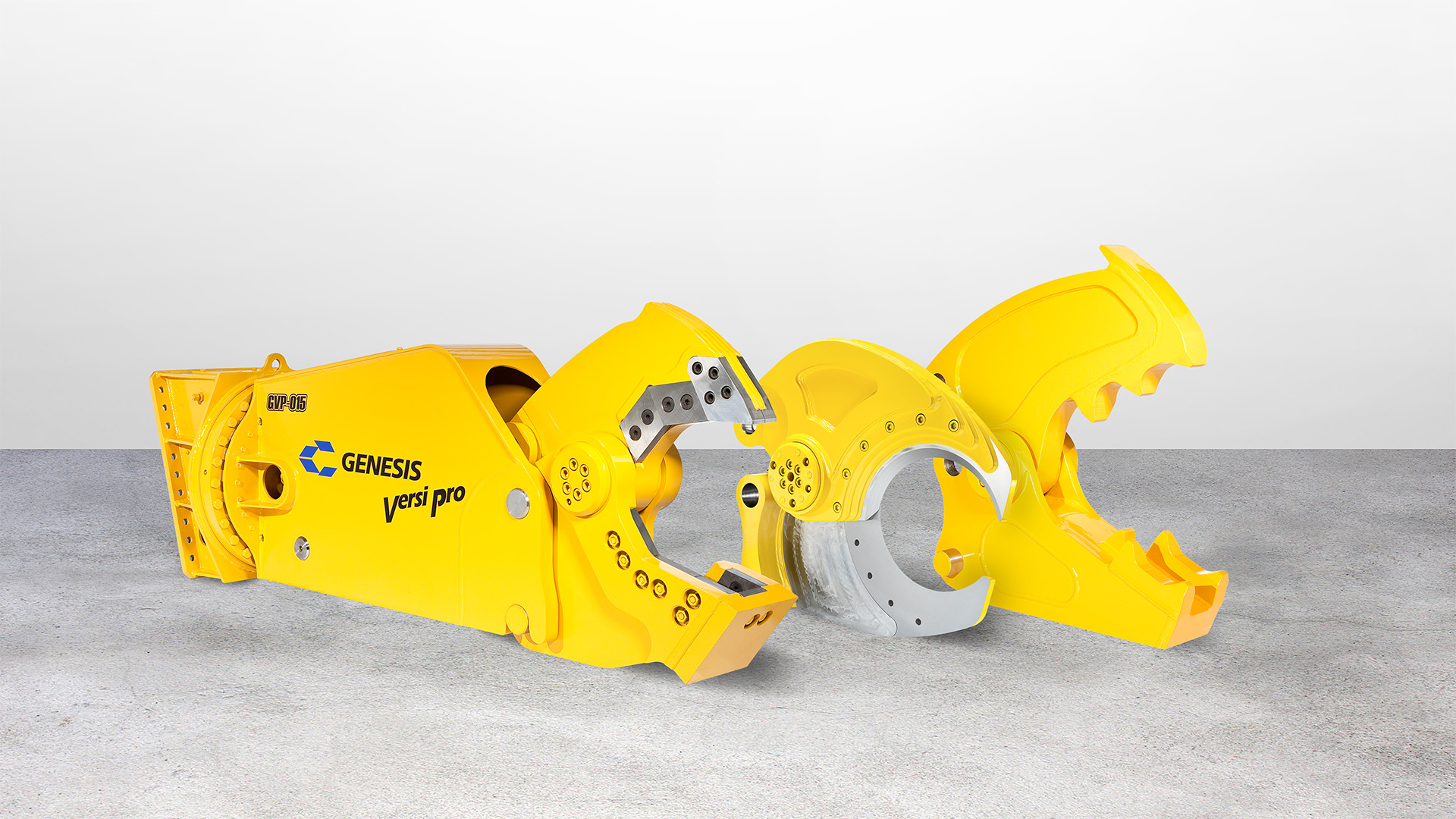

GENESIS GVP 15 - demolition multi shears

GENESIS Versi Pro represents a new dimension in flexibility! The GVP 15 is a true multi-talent.
Whether demolition, scrap or recycling – thanks to its three jaws variants that can be exchanged quickly, it is ready to tackle any application.

Powerful

Multitasking is not an alien concept for the GVP 15, but rather its everyday job. It is suitable for any excavator from eight to 21 tons and can be used universally. Thanks to the large hydraulic cylinders and the optimally positioned main bearing, it features a high cutting and crushing force.

1_GVP15
2_GVP15

Efficient and flexible

The multitasking qualities of the GVP 15 save time – and therefore money. The jaws can be changed with standard tools in just ten minutes, giving you the right attachment for any job.

Quality that you can rely on

The GENESIS Versi Pro 15 is made of high strength fine grained steel and painted with a high quality top coat. Premium quality from manufacturing to the final finish.

The shearing forces can be optimally absorbed thanks to the sturdy frame design. The crushing jaws impress with wear resistant, high quality crushing teeth. The cable jaws can cut even thin materials with a small diameter thanks to the narrow cutting gap.

3_GVP15
4_GVP15

Service made easy

Attachments should work and not require too much servicing. That is why the cutting blades can be used in four orientations and the piercing tips can be replaced easily without welding. The inner workings of the shears are well protected while easily accessible openings with simple covers facilitate service work.

Highly passionate

Multifunctionality and top quality go hand in hand at GENESIS. This is amplified by our passion for the product to ensure first rate quality. By the way – you can assign your GENESIS Versi Pro a custom name chosen completely by you.

5_GVP15
Produkt-Hover-Produktseite_GVP15
hotspot-1

Piercing tip

The piercing tip can be changed easily and quickly. Screwed-on rather than welded-on. Continue working in just a few minutes.
hotspot-2

Cutting blades

The cutting blades ensure optimum cutting performance. The four identical cutting blades of the upper and lower jaws each have four cutting edges and can therefore be used in four orientations.
hotspot-3

Front blade

The front blade can be used in four orientations thanks to the four cutting edges, preventing wear on the inside of the lower jaw.
hotspot-4

Guide blades

The unique double guide blade system allows adjustment of the guide blades to the piercing tips on both sides, independently of the cutting blades. The guide blades can also be used in four orientations.
hotspot-5

Main shaft

Each set of jaws was designed to have its own HD main bearing and a specific positioning of the bolt attachment points. This generates an optimum force progression for any application. The connecting bolts allow for a fast and safe changeover of the jaws sets in less than ten minutes – without any special tools!
hotspot-6

Main shaft

Each set of jaws was designed to have its own HD main bearing and a specific positioning of the bolt attachment points. This generates an optimum force progression for any application. The connecting bolts allow for a fast and safe changeover of the jaws sets in less than ten minutes – without any special tools!
hotspot-7

Material quality

A high strength, low wear steel body ensures maximum performance and service life.
hotspot-8

Material quality

A high strength, low wear steel body ensures maximum performance and service life.
hotspot-9

Hydraulics

The hydraulics are fully protected inside the outer frame, which is equipped with large access openings.
hotspot-10

Cylinder bolt

The cylinder bolt is easy to handle. It can be removed manually.
  • 1

    Piercing tip

    The piercing tip can be changed easily and quickly. Screwed-on rather than welded-on. Continue working after just a few minutes.

  • 2

    Cutting blades

    The cutting blades ensure optimum cutting performance. The four identical cutting blades of the upper and lower jaws each have four cutting edges and can therefore be used in four orientations.

  • 3

    Front blade

    The front blade can be used in four orientations thanks to the four cutting edges, preventing wear on the inside of the lower jaw.

  • 4

    Guide blades

    The unique double guide blade system allows adjustment of the guide blades to the piercing tips on both sides, independently of the cutting blades. The guide blades can also be used in four orientations.

  • 5

    Main shaft

    Each set of jaws was designed to have its own HD main bearing and a specific positioning of the bolt attachment points. This generates an optimum force progression for any application. The connecting bolts allow for a fast and safe changeover of the jaws sets in less than ten minutes – without any special tools!

  • 6

    Locking bolt

    The locking bolt of the lower jaw can be removed easily and safely on site using standard tools.

  • 7

    Material quality

    A high strength, low wear steel body ensures maximum performance and service life.

  • 8

    Suspension

    The suspension can be continuously rotated through 360° and is available for mini diggers as well as for compact diggers.

  • 9

    Hydraulics

    The hydraulics are fully protected. The hydraulic components are installed inside the outer frame that features large access openings.

  • 10

    Cylinder bolt

    The cylinder bolt is easy to handle. It can be removed manually.

Technical data

technische_Zeichnung_GVP15_NEU
GVP 15 incl. Scrap Shear 1.450 2.980 170 406 381 2.348 9 12
GVP 15 incl. Cracker Jaw 1.450 - 170 635 635 2.500 9 12
GVP 15 incl. Wire Cutter 1.335 362 170 342 394 2.580 9 12
