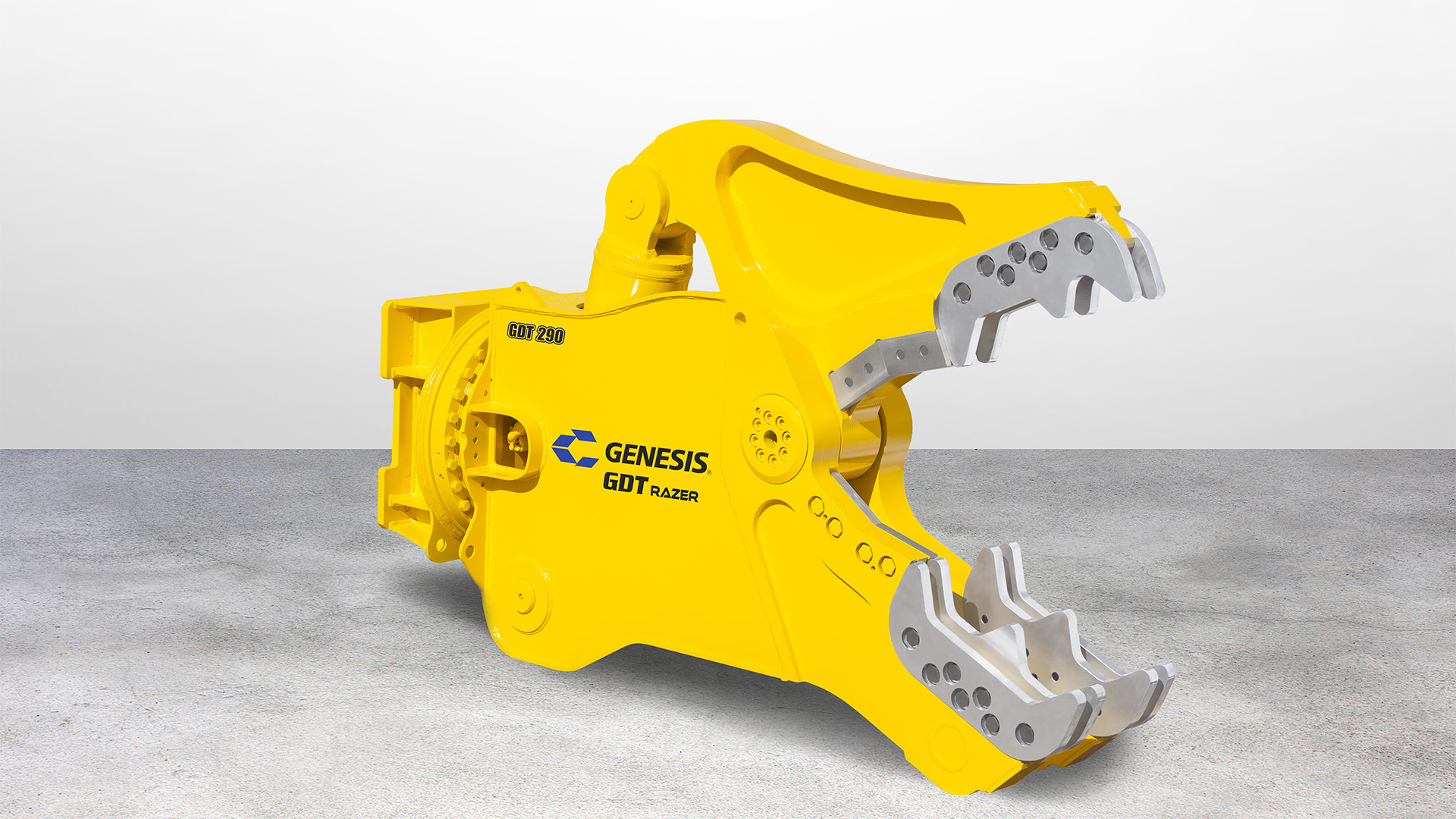

GENESIS GDT Razer - demolition shears

It is the light heavyweight when it comes to primary and secondary demolition work! A true GENESIS innovation: Configurable and flexibly adaptable bolt-on tooth plates and flexible crushing teeth offer an enormous degree of versatility. Adapted to carrier units between 20 and 50 tons and manufactured in premium quality, they can rise to any challenge at the construction site.



Powerful

These demolition shears impress with an ideal ratio between dead weight and crushing force. The hydraulic cylinder with inverse mounting allows for a short design, which – in combination with a compact housing – reduces the weight of the shears. The centre of gravity was moved closer to the carrier unit to enable a more stable position of the carrier unit, even during long-front applications.

1_GDT
2_GDT

Highly efficient

The GDT Razer increases efficiency at the demolition site substantially. The flexible crushing teeth offer maximum performance for any application. The shape of the cutting blades in the rear jaw area draws the material in deeper to provide more efficiency when cutting metal. The bolted-on wear parts are durable and inexpensive to replace – another bonus in terms of efficiency.

Quality that counts

The GDT Razer offers precision that you can rely on. The crushing jaw and shears work with optimum use of force. The cutting blades can be adjusted optimally while the bolted-on tooth plates protect the tooth seating against wear.

The GENESIS Razer offers absolute premium quality – it is made of high strength fine grained steel and finished with a high quality top coat.

3_GDT
4_GDT

Easy maintenance

We always keep an eye on maintenance. The cutting blades, which can be used in four orientations, are bolted on and therefore easy to replace without any welding. The tooth plates can be used in two orientations. The inner workings of the shears are well protected while easily accessible openings with simple covers facilitate service work.

Highly passionate

The top quality and our passion for the product guarantee that you will always receive a first rate product. Individual modifications are always possible. The GDT Razer truly does its name justice. And, by the way, you can also choose a custom name for your shears.

5_GDT
Produkt-Hover-Produktseite_GDT
hotspot-1

The completely new tooth design has resulted in durable, yet inexpensive crushing teeth. They require no welding and can be changed quickly and easily at the construction site.

hotspot-2

The apex shape of the cutting blades – which can be used in four orientations – draw the material deeper into the shears for more efficient cutting.

hotspot-3

The crushing teeth are available in different configurations to ensure maximum performance for any application.

hotspot-4

The open design of the lower jaw allows the material to drop through, preventing jamming of the shear jaws.

hotspot-5

The low weight of the shears allows secure attachment to smaller carrier units, including for long-front applications.

hotspot-6

The short rotating unit improves the position of the centre of gravity, for a more stable position of the carrier unit.

hotspot-7

The design of the cylinder effectively protects the piston rod against damage.

  • 1

    Tooth design

    The completely new tooth design has resulted in durable, yet inexpensive crushing teeth. They require no welding and can be changed quickly and easily at the construction site.

  • 2

    Cutting blades

    The apex shape of the cutting blades – which can be used in four orientations – draw the material deeper into the shears for more efficient cutting.

  • 3

    Crushing teeth

    The crushing teeth are available in different configurations to ensure maximum performance for any application.

  • 4

    Lower jaw

    The open design of the lower jaw allows the material to drop through, preventing jamming of the shear jaws.

  • 5

    Low weight of the shears

    The low weight of the shears allows secure attachment to smaller carrier units, including for long-front applications.

  • 6

    Rotating unit

    The short rotating unit improves the position of the centre of gravity, for a more stable position of the carrier unit.

  • 7

    Cylinder

    The design of the cylinder effectively protects the piston rod against damage.

Technical data

technische_Zeichnung_GDT_NEU
GDT 190 2.040 150 - 225 838 787 2.217 20
GDT 290 2.940 225 - 380 990 1.066 2.564 30
GDT 390 4.170 300 - 380 1.168 1.143 2.956 41
GDT 590 6.360 300 - 750 1.321 1.181 3.489 54
GDT 890 8.500 500 - 750 1.625 1.574 4.216 82
