GVP 07 demolition multi shears

1-4-GVP07

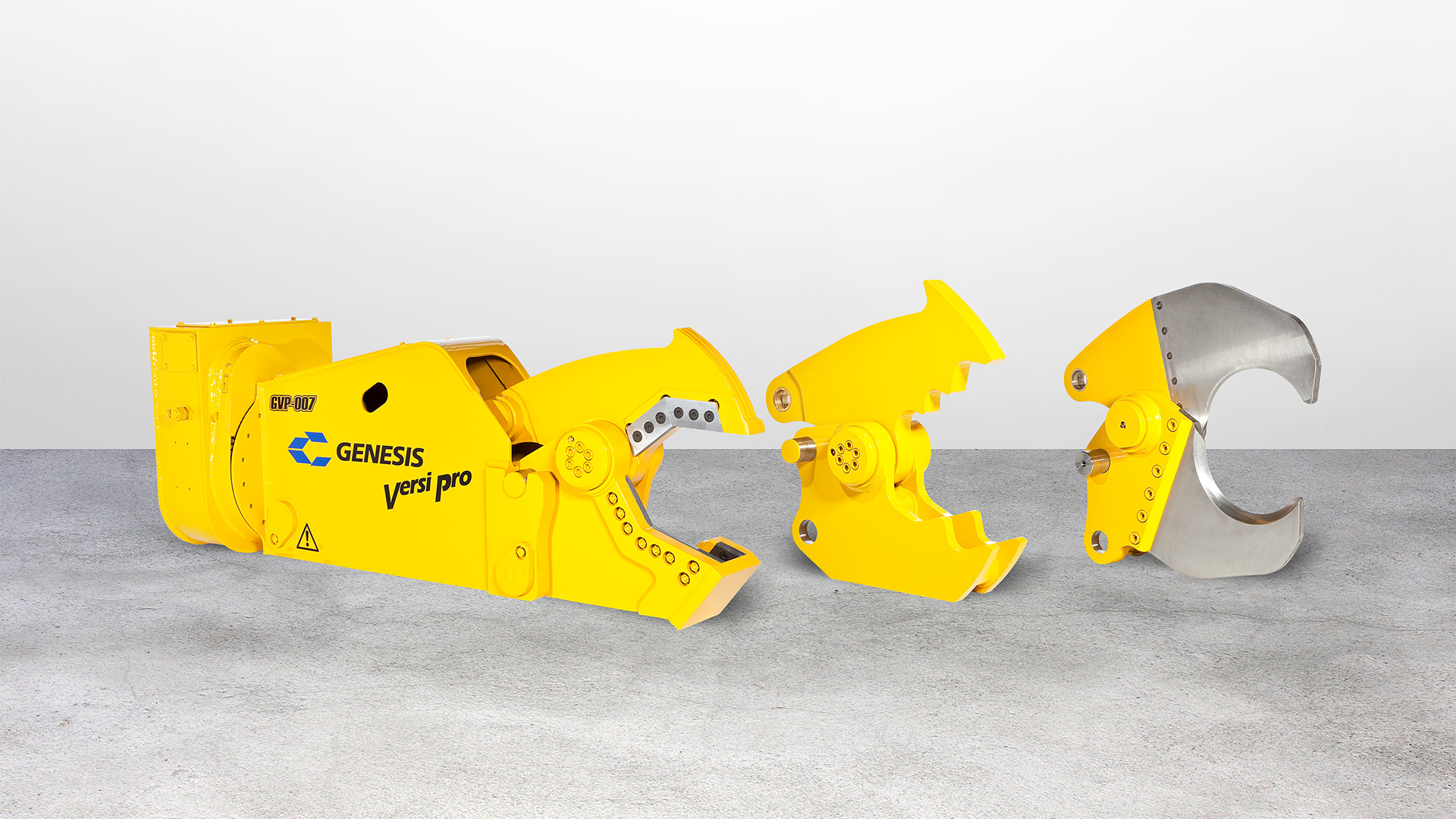

GENESIS GVP 07 - demolition multi shears

React to challenges quickly and flexibly! The GENESIS Versi Pro never leaves you hanging. One of the reasons is the multi-talented GVP 07, on which you can always rely to produce top results in demolition, scrapping, recycling or cable crushing. The jaws can be changed in just a few simple steps.

Powerful  |  Flexible  |  Quality  |  Service  |  Passion  |   Highlights Technical data  |  Gallery

Powerful

The area of application changes – the quality of the GVP 07 remains first rate. It is suitable for all excavators from five to seven tons and impresses with a high cutting and crushing force thanks to the large hydraulic cylinders and the ideally positioned main bearing.

1_GVP07
2_GVP07

Fast and flexible

Things have to move fast, and you have no time to waste on changing jaws! The quick-release attachment makes it possible to replace the jaws with standard tools in just ten minutes. And you are ready for the next job with the right attachment!

Quality that you can rely on

Premium quality that you can rely on! The GVP 07, which is made of fine grained steel, is an excellent example of this. The shearing forces can be optimally absorbed thanks to the sturdy frame design. The crushing jaws impress with wear resistant, high quality crushing teeth. The cable jaws can cut even thin materials thanks to the narrow cutting gap.

3_GVP07
4_GVP07

Service without problems

Uncomplicated service work is a contributing factor for efficiency. The cutting blades on the GVP 07 can be used in four orientations. The inner workings of these shears are well protected, while easily accessible openings with simple covers facilitate service work.

Highly passionate

Quality at the highest level goes hand in hand with our passion for the product. This results in first rate quality. That is what GENESIS stands for. By the way – you can assign your GENESIS Versi Pro a custom name chosen completely by you.

5_GVP07
Produkt-Hover-Produktseite_GVP07
hotspot-1

Piercing tip

Welded-on, replaceable piercing tip for scrap processing
hotspot-2

Cutting blades

The cutting blades ensure optimum cutting performance. The four identical cutting blades of the upper and lower jaws each have 4 cutting edges and can therefore be used in 4 orientations.
hotspot-3

Guide blade

The unique double guide blade system allows adjustment of the guide blades to the piercing tips on both sides, independently of the cutting blades. The guide blades can also be used in four orientations.
hotspot-4

Main shaft

Each set of jaws was designed to have its own HD main bearing and a specific positioning of the bolt attachment points. This generates an optimum force progression for any application. The connecting bolts allow for a fast and safe changeover of the jaws sets in less than ten minutes – without any special tools!
hotspot-5

Locking bolt

The locking bolt of the lower jaw can be removed easily and safely on site using standard tools.
hotspot-6

Material quality

A high strength, low wear steel body ensures maximum performance and service life.
hotspot-7

Suspension

The suspension can be continuously rotated by 360° and is available for mini diggers as well as for compact diggers.
hotspot-8

Hydraulics

The hydraulics are fully protected. The hydraulic components are installed inside the outer frame that features large access openings.
hotspot-9

Cylinder bolts

The cylinder bolt is easy to handle. It can be removed manually.
  • 1

    The piercing tip

    Welded-on, replaceable piercing tip for scrap processing.

  • 2

    Cutting blades

    The cutting blades ensure optimum cutting performance. The four identical cutting blades of the upper and lower jaws each have 4 cutting edges and can therefore be used in 4 orientations.

  • 3

    Guide blades

    The unique double guide blade system allows adjustment of the guide blades to the piercing tip on both sides, independently of the cutting blades. The guide blades can also be used in four orientations.

  • 4

    Main shaft

    Each set of jaws was designed to have its own HD main bearing and a specific positioning of the bolt attachment points. This generates an optimum force progression for any application. The connecting bolts allow for a fast and safe changeover of the jaws sets in less than ten minutes – without any special tools!

  • 5

    Locking bolt

    The locking bolt of the lower jaw can be removed easily and safely on site using standard tools.

  • 6

    Material quality

    A high strength, low wear steel body ensures maximum performance and service life.

  • 7

    Suspension

    The suspension can be continuously rotated by 360° and is available for mini diggers as well as for compact diggers.

  • 8

    Hydraulics

    The hydraulics are fully protected. The hydraulic components are installed inside the outer frame that features large access openings.

  • 9

    Cylinder bolt

    The cylinder bolt is easy to handle. It can be removed manually.

Technical data

technische_Zeichnung_GVP07_NEU
GVP 07 incl. Scrap Shear 624 1.572 95 292 292 1.676 5 7
GVP 07 incl. Concrete Cracker 628 709 95 368 330 1.727 5 7
GVP 07 incl. Wire Cutter 564 351 95 270 290 1.800 5 7
